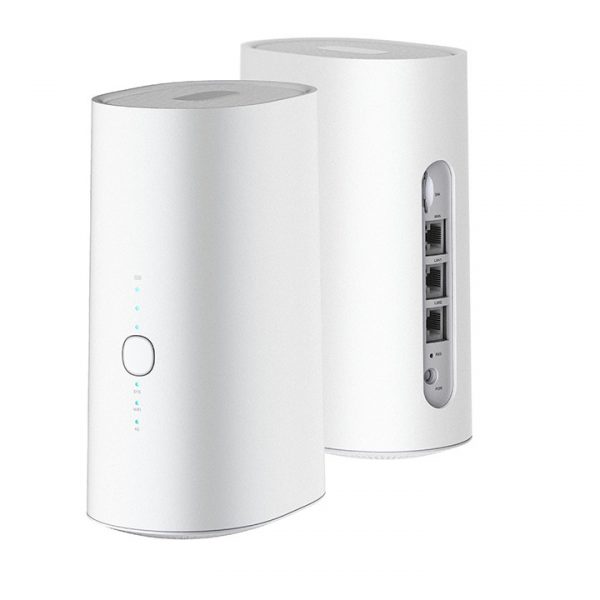

R5089 | 5G CPE, Powerful 5G NR CPE with WIFI 6
R5089 is the latest 5G NR CPE to provide revolutionary 5G technology for your demand. It’s a full-featured 5G CPE that can support up to 3.3Gbps Downlink, with WIFI 6, PLC, NAS supported. It supports both 5G NR and 4G LTE – up to Cat 20. With the 5G NR network and support the lastest 802.11ax WIFI 6 network, you will be able to enjoy the powerful and revolutionary high-speed. It can support both the Sub-6G and mmWave networks.
Description
Features- 5G Modem: Qualcomm X55
- Main Chipset: Qualcomm IPQ8072A+QCN5054+QCN5024+PMP8074
- Sub-6 GHz or mmWave frequency compatible
- Built-in 5G NR NSA and SA module, 5G NR and LTE-A Cat 20+ Dual-mode module
- Support both NSA and SA modes
- 3 Gigabyte Ethernet RJ45 Ports
- 802.11n and 802.11ac Dual-Band Wi-Fi with MU-MIMO, 802.11ax WIFI 6 with MU-MIMO
- 4 external antennas for LTE/5G NR
- FOTA and TR069
- Supports VoLTE and VoIP
THE POWERFUL 5G CPE
Acetel 5G CPE R5089 is the lasted Ultra-Gigabyte 5G CPE router. Powered with Qualcomm’s Networking Pro 1200 and Snapdragon X55 5G Chipset., it can support both 5G and WIFI 6 technology. R5089 can support up to 3.3Gbps downlink speed on 5G and a maximum 4.8Gbps downlink on WIFI 6 (802.11AX). Both 5G and WIFI 6 technologies provides powerful features designed to improve the performance for latency-sensitive applications such as voice and video.SMART HOME AND EDGE COMPUTING SOLUTION
As a WIFI 6 Router, the R5089 5G CPE has a reserved SSD hard disk interface and supports PLC connection, which can be used as a NAS device or an edge computing device. R5089 is indeed the most functional 5G CPE device in the world today.
ALL-TIME AND WORLD-WIDE CONNECTION
The Acetel R5089 5G CPE Pro supports both 2G/3G/4G / 5G networks and fix-line networks. It can support the word-wides bands, which make the most suitable CPE for different telecom operators.Specification:
| Hardware Specification | ||||
| Master | Chip solution | Qualcomm IPQ8072a+QCN5054+QCN5024+PMP8074 | ||
| FLASH/Memory | 256MB Nand /1GB DDR4 | |||
| antenna | 2.4G: 4T4R 5.8G: 4T4R 5G LTE: 4T4R | |||
| hard disk | Reserve SSD position, M.2 interface, compatible with 2280, 2242 | |||
| port | 3*10/100/1000Mbps RJ45 (support blind insertion of network port) | |||
| Voice port | 1*RJ11 | |||
| USB | USB3.0*1 | |||
| button | POWER/RESET | |||
| power supply | DC 12V 3A (TBD) | |||
| Indicator light | POWER indicator (blue), WiFi indicator (blue), 5G networking indicator (tricolor), voice indicator (blue), Zigbee indicator (blue), USB indicator (blue), Network port (included with RJ45 connector) | |||
| smart device | Zigbee | zigbee 3.0, Ti chip | ||
| Wireless part | Frequency Range | 2.4~2.4835GHz, 5.150GHz~ 5.850GHz | ||
| Wireless rate | 11b: 1/2/5.5/11Mbps | |||
| 11g: 6/9/12/18/24/36/48/54Mbps | ||||
| 11n: up to 600Mbps | ||||
| 11ac: up to 2700Mbps | ||||
| 11ax: up to 3600Mbps | ||||
| Working channel | 2.4G: 1~13 | |||
| 5.8G: 36,40,44,48,52,56,60,64,149,153,157,161,165 | ||||
| Spread Spectrum Technology | DSSS (Direct Sequence Spread Spectrum) | |||
| Data modulation | 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |||
| 802.11b: DSSS (DQPSK, DBPSK, CCK) | ||||
| 802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | ||||
| 802.11n: OFDM ( BPSK, QPSK, 16-QAM, 64-QAM) | ||||
| 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) | ||||
| 802.11ax: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM) | ||||
| Medium access protocol | CSMA/CA with ACK | |||
| data encryption | WPA-PSK/WPA2-PSK, WPA/WPA2 | |||
| Power (standard power) | 2.4G: 11b: 27dBm dBm | |||
| 11g: 25dBm ± 2dBm | ||||
| 11n: 25dBm ± 2dBm | ||||
| 11ax: 18dBm ± 2dBm (TBD) | ||||
| 5.8G: 11ac (VHT80): 21dBm ± 2dBm | ||||
| 11ax: 15dBm ± 1dBm (TBD) | ||||
| Receive sensitivity | 2.4G: 11b: <-87dbm@11Mbps | |||
| 11g: <-71dbm@ 54Mbps | ||||
| 11n (HT20): ≤ -68dBm@MCS7 | ||||
| 11n (HT40): ≤ -65dBm@MCS7 | ||||
| 5.8G: 11an (HT20): ≤ -69dBm@MCS7 | ||||
| 11an (HT40): ≤ -65dBm@MCS7 | ||||
| 11ac (VHT80): ≤ -55dBm@MCS9 | ||||
| 11ax: (VHT160):-60dBm@MCS9 | ||||
| heat sink | The heat sink covers the whole PCBA | |||
| 5G module | 5G module model | M.2 package moves away from RM500Q | ||
| 5G NR | n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79 | |||
| LTE-FDD (supports diversity reception) | support B1/2/3/4/5/7/8/9/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 | |||
| LTE-TDD (supports diversity reception) | support B34/B38/39/40/41/42/48 | |||
| LAA | B46 | |||
| WCDMA | support BC1/2/3/4/5/6/8/19 | |||
| GNSS | GPS/GLONASS/BeiDou/Galileo | |||
| 5G SA sub-6 transmission rate | Downlink: up to 3.3Gbps, Uplink: 250Mbps | |||
| LTE transmission rate | Downlink: up to 2.0Gbps, Uplink: 150Mbps | |||
| button | Reset button | 1 reset button, press and hold for 5 seconds to restore factory settings | ||
| POWER | Short press 3 seconds to turn on, then short press 3 seconds to turn off | |||
| LED lights (the order is from the bottom to the top of the product) | POWER | Power indicator light, the blue indicator light is always on | ||
| WiFi | Wireless indicator light (it is always on and flashes when data is transmitted) | |||
| 5G network indicator | 5G network is always on in blue, 4G network is always on in green, 3G/2G network is always on in red, and network failure fails red flashing | |||
| Voice indicator | Voice indicator (the blue light is always on after registration is successful, flashes during the call, and does not light up if not connected) | |||
| Zigbee | Smart device indicator light (the blue light is on when the smart device is connected, the smart device is joining and blinking, no smart device is connected or the function is disabled, the indicator is turned off) | |||
| USB | Steady USB connection, flashing data | |||
| WAN | The WAN is connected to the network cable, and the network cable is normal, and the blue is always on; when there is data transmission, the WAN indicator flashes blue | |||
| LAN1 | LAN1 is connected to the network cable, and the network cable is normal, and the blue is always on; when there is data transmission, the wan indicator flashes blue | |||
| LAN2 | LAN2 is connected to the network cable, and the network cable is normal, and the blue is always on; when there is data transmission, the wan indicator flashes blue | |||
| PCBA | Size requirements | Design based on DXF files | ||
| interface | WAN/LAN RJ45 interface | 3*10/100/1000Mbps RJ45 | ||
| voice | RJ11*1 | |||
| SIM card | NANO-SIM | |||
| USB | USB3.0*1 | |||
| Power interface | DC 12V 3A (TBD) | |||
| Software requirements: | ||||
| Software development | R & D Center | |||
| The main function | 5G networking | |||
| 11AX wireless access | ||||
| status | Router status | |||
| WiFi user connection status | ||||
| Zigbee smart device access status | ||||
| 5G network status | ||||
| Language Requirements | Chinese and English bilingual | |||
| The internet | Network settings | Dynamic IP mode, broadband dialing mode, static IP mode, default dynamic IP | ||
| Mobile connection | Data roaming, search operator, traffic settings | |||
| local area network | DHCP settings, the default LAN address is 192.168.1.1/24 | |||
| wireless | WiFi settings | WiFi switch, name, password, protocol, bandwidth, channel, hidden | ||
| Black and white list | Add (can be imported from user list), delete, move black and white list | |||
| WPS | PIN code access, PBC access | |||
| Advanced network settings | IPv6 | Four IPv6 networking methods: relay mode, static IP, dynamic IP, broadband connection. By default, IPv6 is turned off | ||
| APN | The relevant information of APN will be automatically adapted according to the inserted SIM card | |||
| Guest network | Off by default | |||
| Parental Controls | Display the time period of the terminal’s MAC address to access the external network, you can configure the start switch, device name, MAC address, access time, description, status, etc. | |||
| VPN client | There are two main types of VPN client configuration: PPTP and L2TP | |||
| voice | Voice support | Support | ||
| SMS | Plug in a usable SIM card, you can realize the functions of sending short messages and receiving short messages | |||
| Firewall | ALG | FTP/PPTP penetration/L2TP penetration can be enabled | ||
| Port Mapping | ||||
| DMZ settings | ||||
| MAC filtering | ||||
| IP filtering | ||||
| NAT settings | Fully conical, symmetrical, address-restricted cone, port-restricted cone | |||
| DDOS | Enable the anti-network attack function. When this function is enabled, the router will start the anti-network attack function. When it is detected that a host launches an attack on the router, it will automatically limit its bandwidth | |||
| management | SNTP | |||
| PIN management | Fill in the PIN code of the SIM card, enter the wrong PIN code 3 times in succession, the SIM card will be locked, you need to enter PUK to unlock | |||
| Traffic Statistics | Traffic statistics are used to visually display the use of broadband resources by intranet PCs | |||
| TR069 | The management server in the network management model defined by the TR069 protocol is called an automatic configuration server (ACS), and is responsible for the management of user terminal equipment (CPE). The ACS server can restart, reset, and upgrade CPE according to the TR069 protocol, which can realize the function of managing multiple routers | |||
| change Password | ||||
| Backup, upgrade | Download the backed up configuration, upload the backed up configuration | |||
| Restart, reset | Contains immediate restart and scheduled restart functions | |||
| Modem | Only for technical operation and maintenance | |||
| Mobile page requirements | Support APP management | |||
| Remote management | Support remote viewing, login to upgrade management equipment | |||
