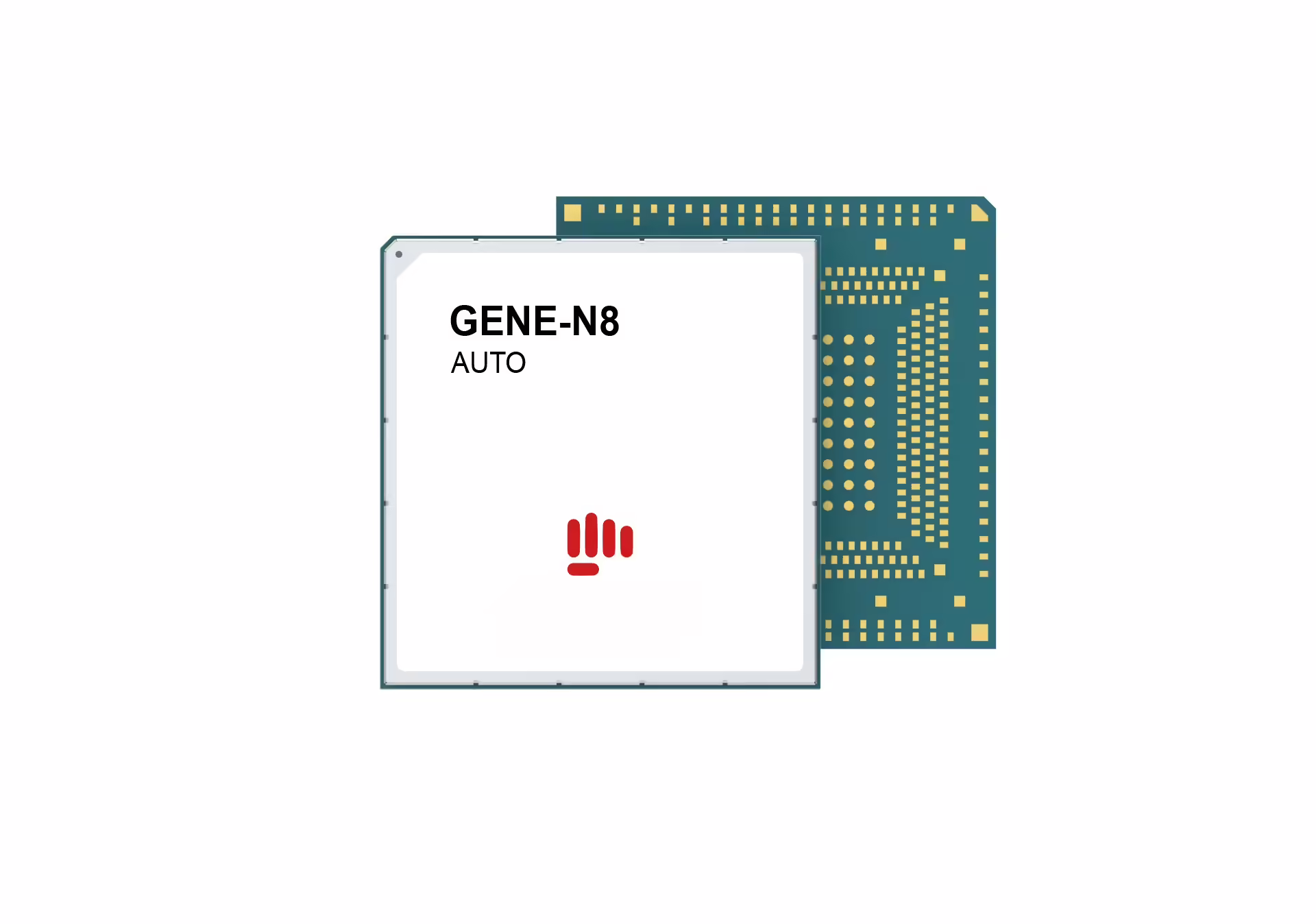

N8 | Automotive-grade 5G Module

Description

The GENE-N8 series 5G module, powered by Qualcomm SA522M and SA525M, integrates 3GPP Release 16 5G NR, GNSS, and a dual-antenna V2X modem. It offers high-speed 5G and LTE-A connectivity, robust performance in harsh environments, and is optimized for global automotive applications.The embedded GNSS in the N8 delivers precise positioning with support for global satellite constellations.The N8 Series offers band-combination variants tailored to meet regional market demands across North America, China, Europe/Middle East, and other global regions.Main Advantages• Chipset according to AEC-Q100; Manufacture with ISO/TS 16949 standard • Support GPS, GLONASS, Galileo, BeiDou, QZSS • Multi variants for different regions with different 5GNR,LTE-A, WCDMA and GSM band combinations. • Ethernet and PCIe advanced high-speed interfaces • Wide extended operating temperature: -40°C/+85°C

Automotive Grade

5GNR / LTE-A / GNSS / C-V2X / VoNR / Dead Reckoning

5GNR with Sub-6GHz modem, 3GPP Release 16, LTE Cat.19 With VoLTE, CSFB, SRVCC, ECNR support 4×4 MIMO, Rx Diversity With multi-variants for global market With eCall support With Ethernet, USB 3.1, PCIe and Digital Audio interface support With GNSS (GPS, GLONASS, Galileo, Beidou, QZSS) L1+L5/L2 band support Option with VoNR, DR and C-V2X support With Secure boot and ARM TEE support Wide operating temperature range -40°C ~ 85°C Manufacture under IATF 16949/AEC-Q100 Quality specifications
