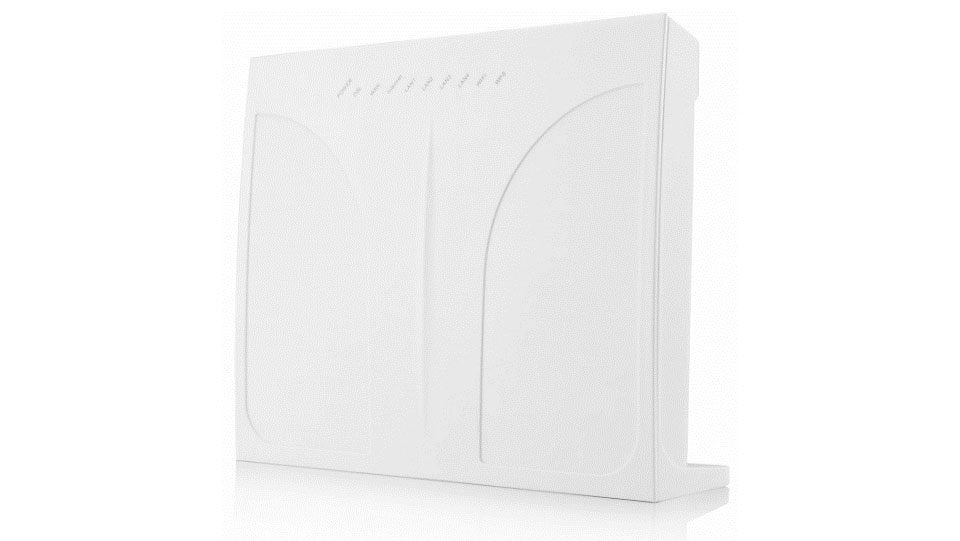

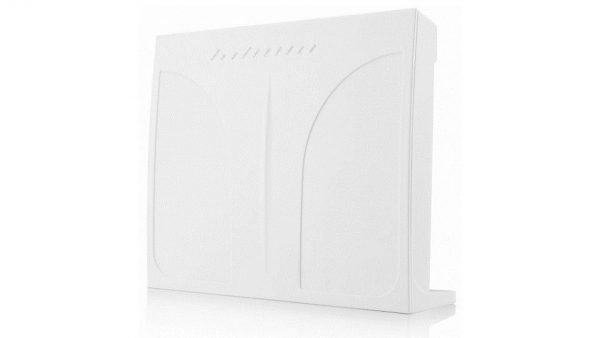

DL264 | Hybrid VDSL2/LTE Gateway 802.11ac Dual-Band WiFi
The DL264 LTE/DSL gateway is the ideal solution for small businesses, home users, or any customer with always-on broadband access requirements. The DL264 integrates high-speed Category 4 / 6 LTE, 802.11ac WiFi, and xDSL technologies in a high-value product at a reasonable price.
- Dual WAN VDSL2/LTE Gateway
- LTE Cat4 and LTE Cat6 supported
- Auto-sensing ADSL2+ / VDSL2 /LTE with automatic failover to 4G LTE or DSL
- Full speed LTE (up to 150 Mbps on LTE CAT4 and 300Mbps on LTE CAT6)
- Two FXS Phone Ports, Cost-Effective VoIP
- Dual-Band 802.11ac + 802.11n
- TR069
Description
| General | |
| DSL Standards | VDSL2, ADSL2/2+, ADSL |
| LTE Standard | LTE Cat4 or LTE Cat6 |
| Wireless Standards | IEEE802.11a/n/ac,5GHzIEEE802.11b/g/n,2.4GHz |
| Signal Rate | 5GHz:Up to 1300Mbps2.4GHz:Up to 450Mbps |
| Operation Frequency | 2.4GHz and 5GHz |
| Receive Sensitivity | 5GHz11a 6Mbps : -96dBm, 11a 54Mbps: -79dBm11ac HT20: -71dBm, 11ac HT40: -66dBm, 11ac HT80: -63dBm,11n HT20: -72dBm, 11n HT40: -71dBm2.4GHz11g 54M: -77dBm11n HT20: -74dBm, 11n HT40: -72dBm |
| Wireless Security | WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| VOIP Standards | SIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711 |
| Hardware | |
| Interfaces | 1 x DSL Port4 x 10/100/1000Mbps LAN Ports2 x FXS ports1 x Sim card Port |
| Buttons | Power ON/OFF Button, WPS Button, WiFi Button，Reset Button |
| Power Supply | DC 12V 2A |
| Antenna | 2 x 5dBi dual band fixed antennas2 x 5dBi 4G LTE antennas |
| Dimensions (W X D X H) | 210 x 150x 32mm |
| LTE Support Bands | |
| Variant | FDD-LTE B1/B2/B3/B5/B7/B8/B28TDD-LTE B38/B39/B40/B41HSPA+/WCDMA B1/B2/B5/B8GSM/GPRS/EDGE B2/B3/B5/B8 |
| Protocols | TCP/UDP/PPP/FTP/HTTP/SMTP/SSL/POP3/DNS/MMS |
| Data | •LTE CAT.4– Downlink up to 150Mbps– Uplink up to 50Mbps,•LTE CAT.6– Downlink up to 300Mbps– Uplink up to 50Mbps, |
| Software Features | |
| WAN Type | ATM/PTM/ETH/Dongle |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Quality of Service | WMM, Bandwidth Control |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Control, Local Management Control, Host List, AccessSchedule, Rule Management |
| Firewall Security | DoS, SPI FirewallIP Address Filter/MAC Address Filter/Domain FilterIP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server/DLNA |
| VOIP Features | Two RJ-11 FXS ports for connecting to analog telephonesCall forwarding, Call waiting, Call block, 3-way conference call, etc. |
| Management | Access ControlLocal ManagementRemote Management |
| Internet Protocol | IPv4, IPv6 |
| Environment | |
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Relative Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
| Certifications | CE, RoHS |
| Package Contents | |
| Package Contents | 1 x VDSL LTE Modem Router1 x Power Adapter1 x VDSL Splitter |
