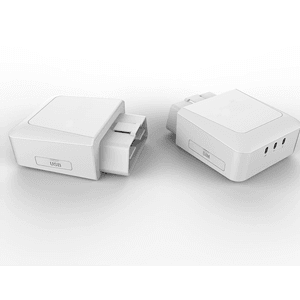

4G LTE OBD WiFi Hotspot GPS Tracker
A5 is an intelligent 4G LTE OBD solution with WIFI hotspot for connected car, which integrates 2G/3G/4G modem, Wi-Fi, Bluetooth and GPS. Developed on Qualcomm Snapdragon chipset and running on Android system, this 4G LTE OBD-II tracker OBD2 with wifi hotspot supports different applications and is an ideal option for in-vehicle smart gateway terminals.
Inquiry Now
Description
Features
- Support 4G LTE/WCDMA/EVDO/GSM
- LTE FDD: Cat.4 (150 Mbps DL,50 Mbps UL)
- WiFi Hotspot, Support 10 users WiFi Sharing
- Support most legislated OBD-II protocols
- MQTT protocol
- GPS location tracking
- Data collection and analysis
- FOTA
- Gyroscope
- G-Sensor
Specification
| Model | N2810 | ||
| Dimensions | 63.3*50.0*25.0mm | ||
| Form | 4G LTE OBD Dongle | ||
| OS | Android | ||
| APP: | To provide API interface, support for customers to develop their own implants | ||
| Memory | RAM: 1 GB LPDDR3 SDRAM Flash: 8 GB NAND | ||
| Communication System (WAN) | Modem Chipset | Qualcomm MSM8909 | |
| Frequency Bands | LTE | Band 1, 2, 3, 5, 7, 8, 28, 38, 40 | |
| UMTS | Band 1, 2, 3, 5, 8 | ||
| CDMA/EVDO | Band Class 0, 1 | ||
| GSM | 900MHz, 1800MHz, 850MHz, 1900MHz | ||
| Data Rate | 4G | 3GPP Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps | |
| 3G | 3GPP Downlink/Uplink up to 42Mbps/5.76Mbps 3GPP2 Downlink/Uplink up to 3.1Mbps/1.8Mbps | ||
| 2G | EGPRS Class33 Downlink/Uplink up to 296Kbps/236.8Kbps | ||
| Connectivity | WIFI | 802.11 b/g/n, supporting AP mode | |
| Bluetooth: | BT3.0, BT4.0 (BLE) | ||
| GNSS: | GPS, BDS, GLONASS | ||
| Feature | Interface | OBD | 16-pin OBD trapezoid |
| USB | USB 2.0 (Micro USB ) | ||
| USIM | Single, 2FF | ||
| LED | Status | Tri-color LED lights (Red/Green/Blue) | |
| Gyroscope | YES | ||
| G-Sensor | YES | ||
| FOTA | Yes | ||
| OBD-II protocols | ISO 9141-2 /ISO 14230 /ISO 15765-4 | ||
| KWP2000_FAST /KWP2000_5BPS | |||
| CAN250K_11BIT /CAN250K_29BIT | |||
| CAN500K_11BIT /CAN500K_29BIT | |||
| Operation System | Windows | XP/7/8/10 | |
| MAC OS | 10.7+ | ||
| Linux | Ubuntu 13.04+ | ||
| Browser | IE9+, Firefox, Google Chrome, Safari, Opera | ||
| Applications | Data analysis of fleet management | ||
| UBI | |||
| Data collection and analysis, including diagnostic data, location data and driving behavior data | |||
| Vehicle maintenance | |||
| Specifications | Supply voltage: 9 V to 36 V | ||
| Max average current: 250 mA/12V | |||
| Idle current: 30 mA/12V | |||
| Operating temperature : -25°C to +75°C | |||
| Relative Humidity:5% to 95% (Non-condensing) | |||
| Certification | 3GPP Compliance | CE/FCC/GCF, upon customer’s requirement | |
| Meterial | RoHS | ||
